1. IR resolution up to 640 × 480, Superior image quality.
2. Quick location, laser ranger finder with 600m accuracy.
3. Full color OLED 1024×768 high-definition display, easy observation.
4. Adjustable interpupillary distance between 60mm~70mm.
5. Well-designed PIP mode, highlighting the target.
6. Realize live image and remote control via WIFI connection.

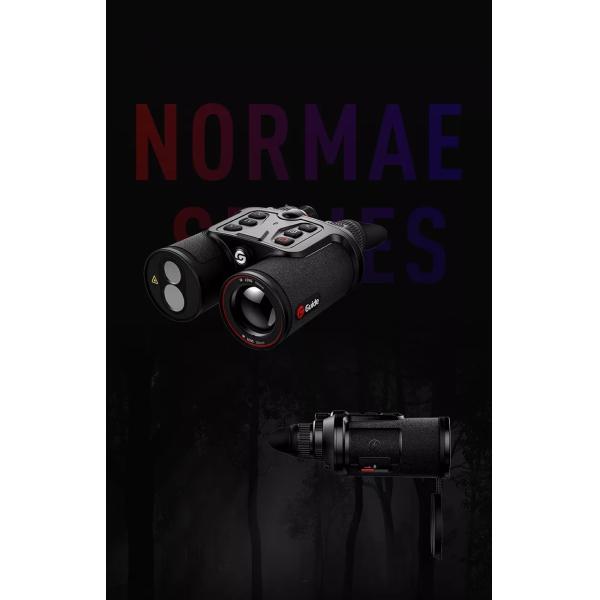

TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation . It adopts high - sensi t i vi t y VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high - definition display . A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
This series includes TN430,TN450,TN630,TN650. This product is TN430, please contact us for other models.
| Product name |
TNSeriesUserManual-TN430 |
|
Product Size
|
400×300 @17pm, VOx
|
|
NETD
|
≤ 50mk
|
|
Magnification
|
2.3X~9.2X
|
|
Frame Rate
|
50Hz
|
|
Digital Zoom
|
1X~4X (Smooth zoom)
|
|
Color Palettes
|
White Hot, Black Hot, Customized red hot, Blue Hot, Red Hot, Green hot
|
|
USB
|
TYPE C (USB 2.0 standard ) for charging, data transmission
|
| Battery life |
≥6h
|
|
Tripod Interface
|
Inch 1/4-20
|
|
Certificate
|
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
|
|
Weight
|
860g
|
|
Dimensions
|
162mm×146mm×70mm
|
|
Screen
|
Full-color 0.39'OLED Screen ×2 1024×768
|
|
Spectral
|
8pm~ 14pm
|
|
Eyepiece
|
Exit pupil distance 16.4mm, Adjustable diopter -4~＋ 2, Adjustable interpupillary distance between 60mm~70mm
|
|
Laser Designating
|
Red Yellow Green
|
| Operating temperature |
-30°C ~ 50°C
|
| Storage temperature |
-40°C ~ 60°C
|
